SIMITAR 3000
3000W RACK-MOUNT DC-AC INVERTERS WITH STATIC TRANSFER SWITCH
Color
related links

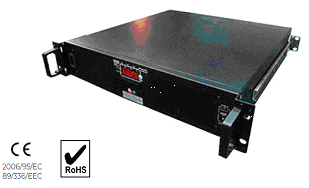

The SIMITAR 3000 Series are 3000W sine-wave inverters which are 19” rack-mountable and only2RU high. Different models operate from a 12, 24 or 48 VDC source and produce a 115 or 230VAC output. The tightly regulated low distortion 50 or 60Hz sine wave is produced by DSP controlled power circuits using an advanced high frequency, pulse-width modulation technique which achieves up to 92% efficiency.A built-in Static Transfer Switch allows connection of a utility or other AC power source which can be switched to the load automatically in the event that the inverter switches off. In normal operation these inverters isolate the load from wide voltage swings , transients and noise usually present in the AC utility and which can cause equipment reliability problems. Output voltage and frequency are programmable from the front panel, as well as Baud Rate for the RS232 communications interface which can be used for remote monitoring.
